GRIFFIN

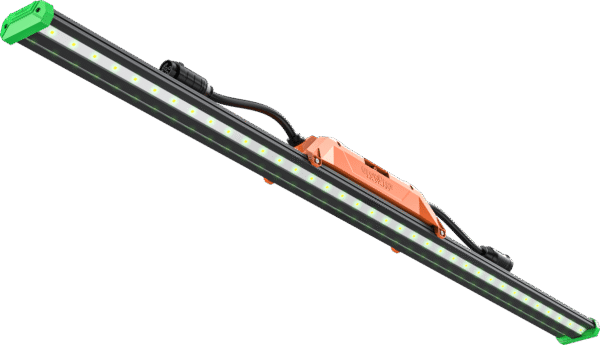

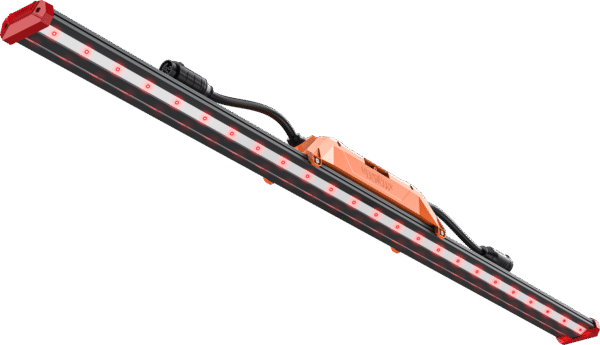

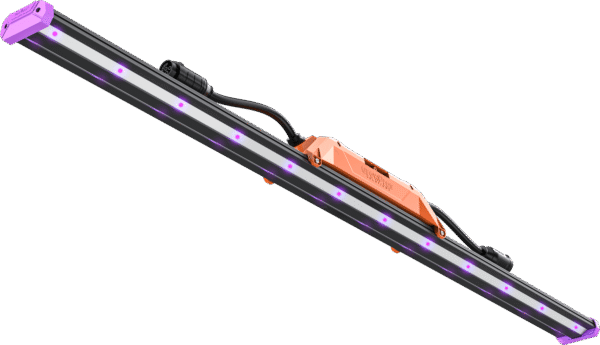

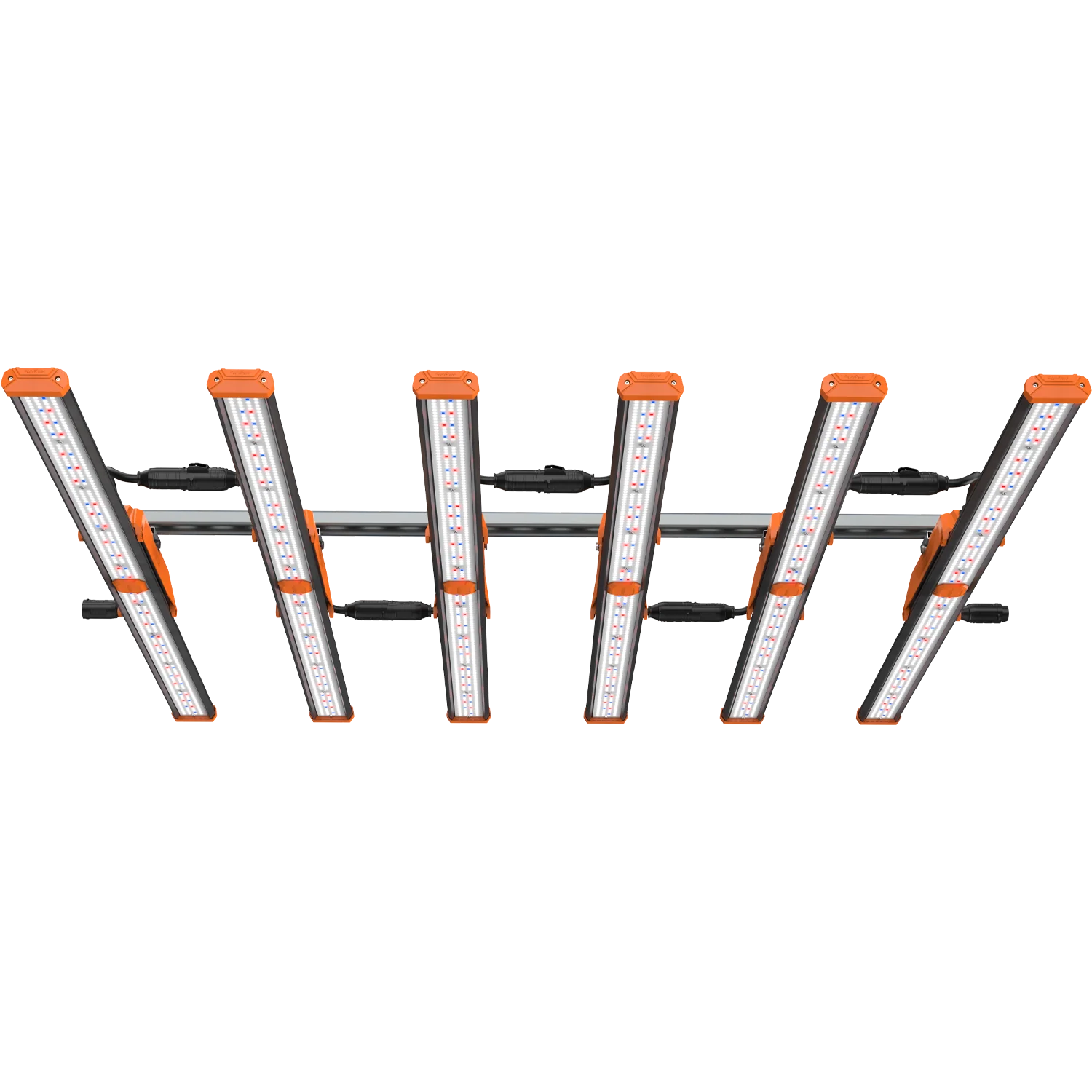

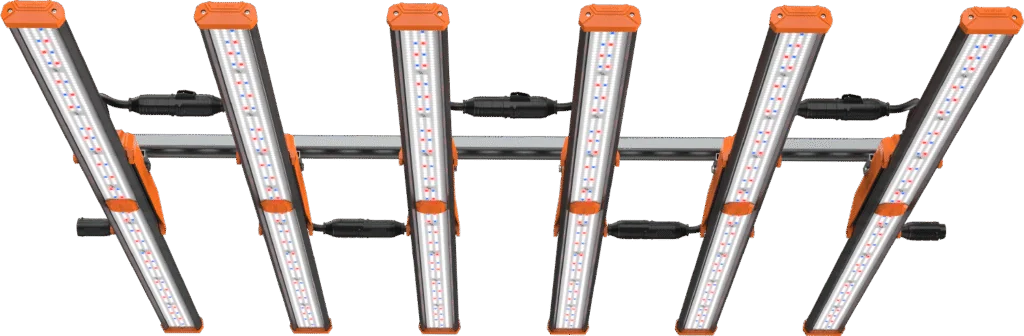

GRIFFIN’s detachable rack LED fixture combines full-spectrum diodes with dedicated green, infrared red and UV chips, engineered for commercial indoor rooms and greenhouses, enabling control over the plant cycle from the vegetative stage to the flowering stage. By utilizing our specially designed top lights you can maximize your growth and yields by illuminating the previously underlit areas of your plants.

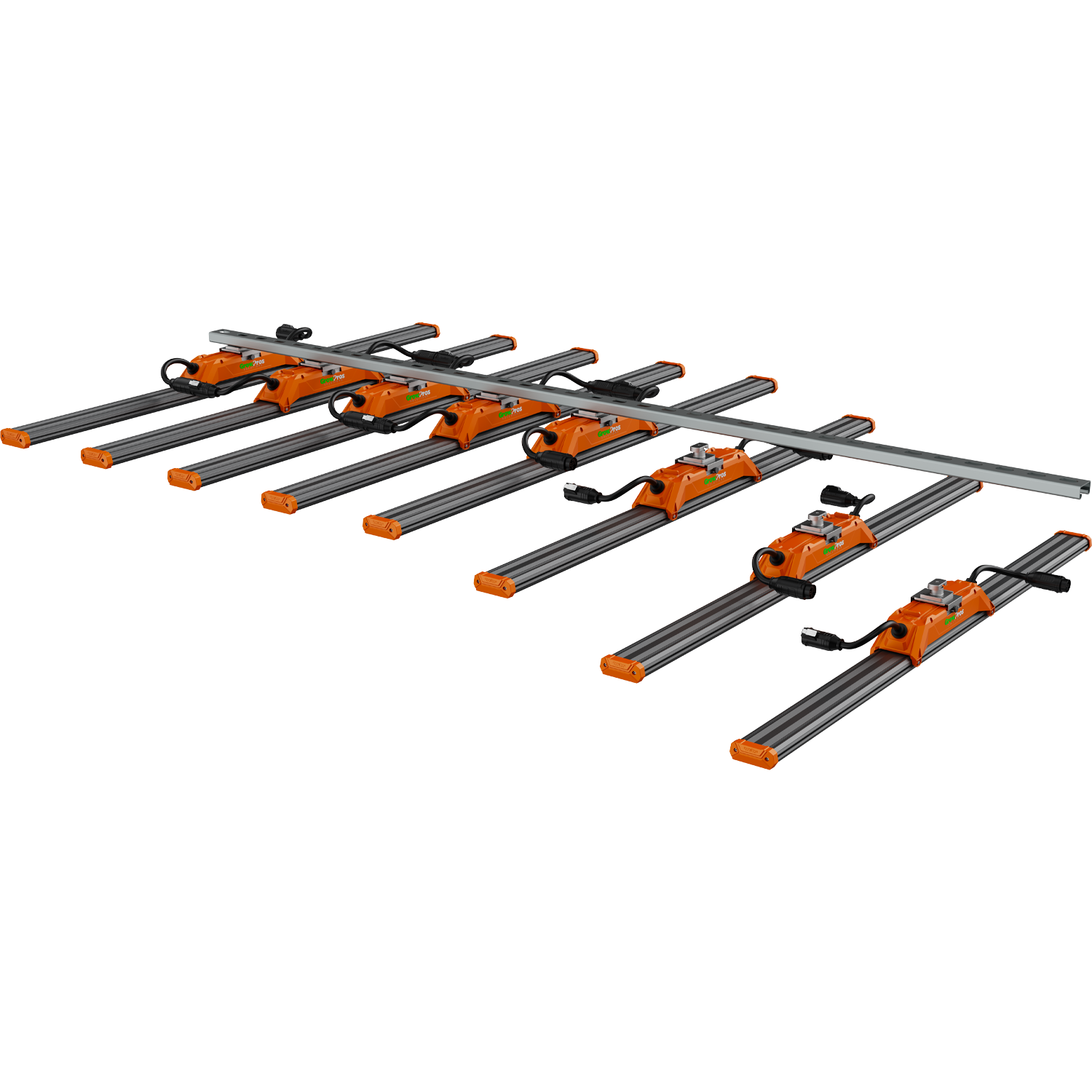

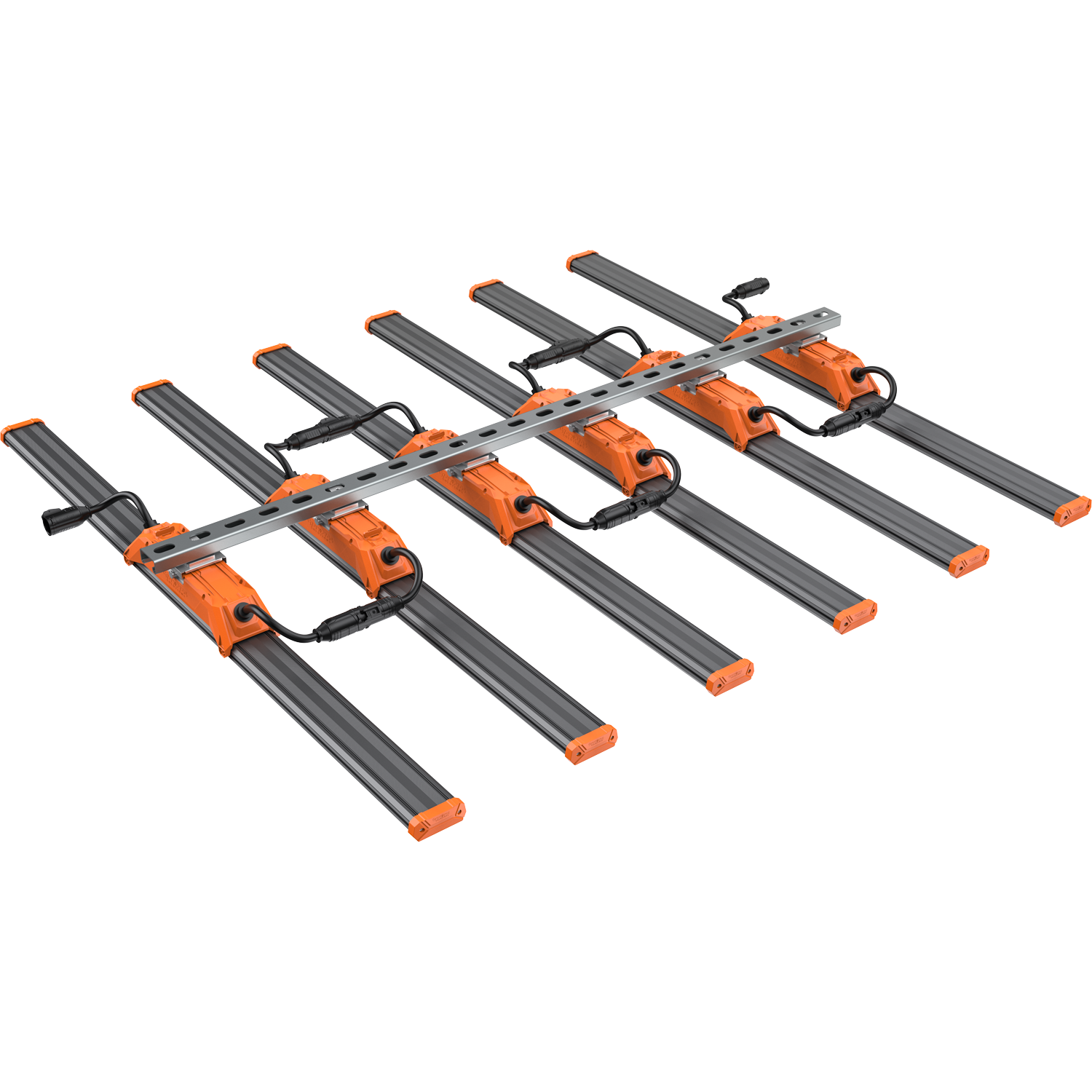

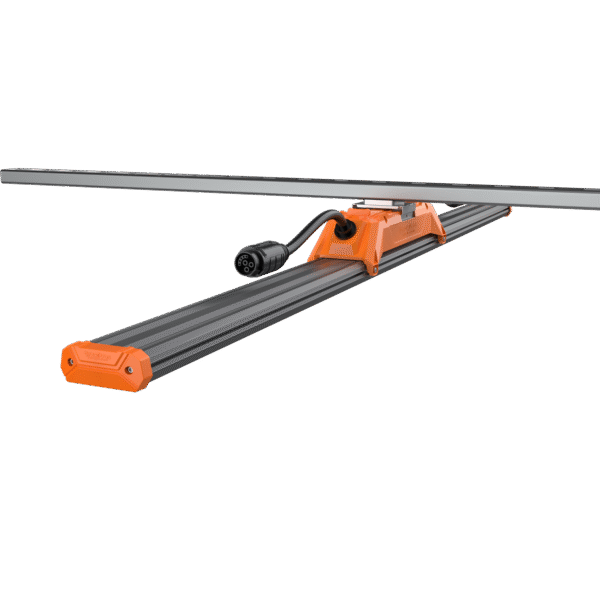

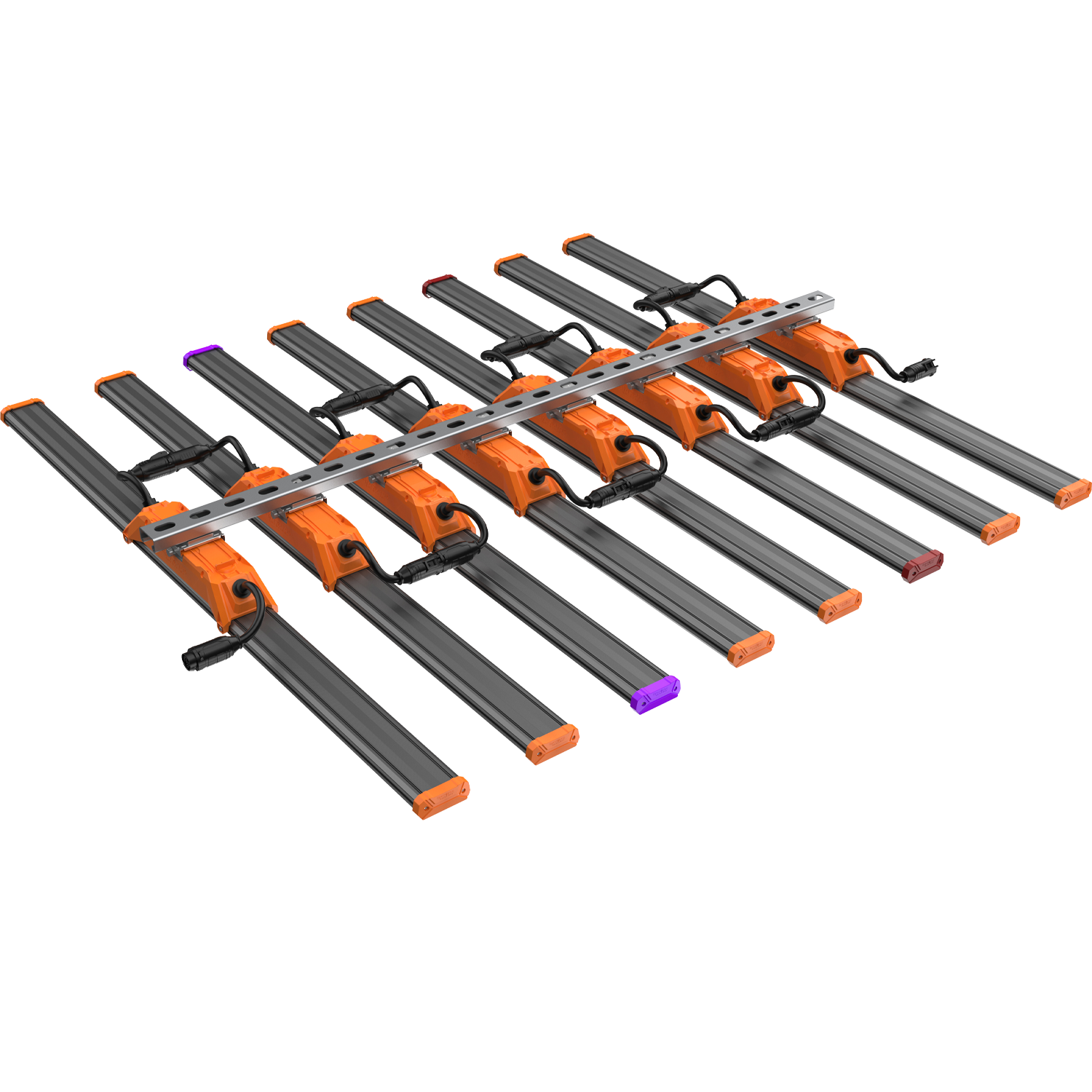

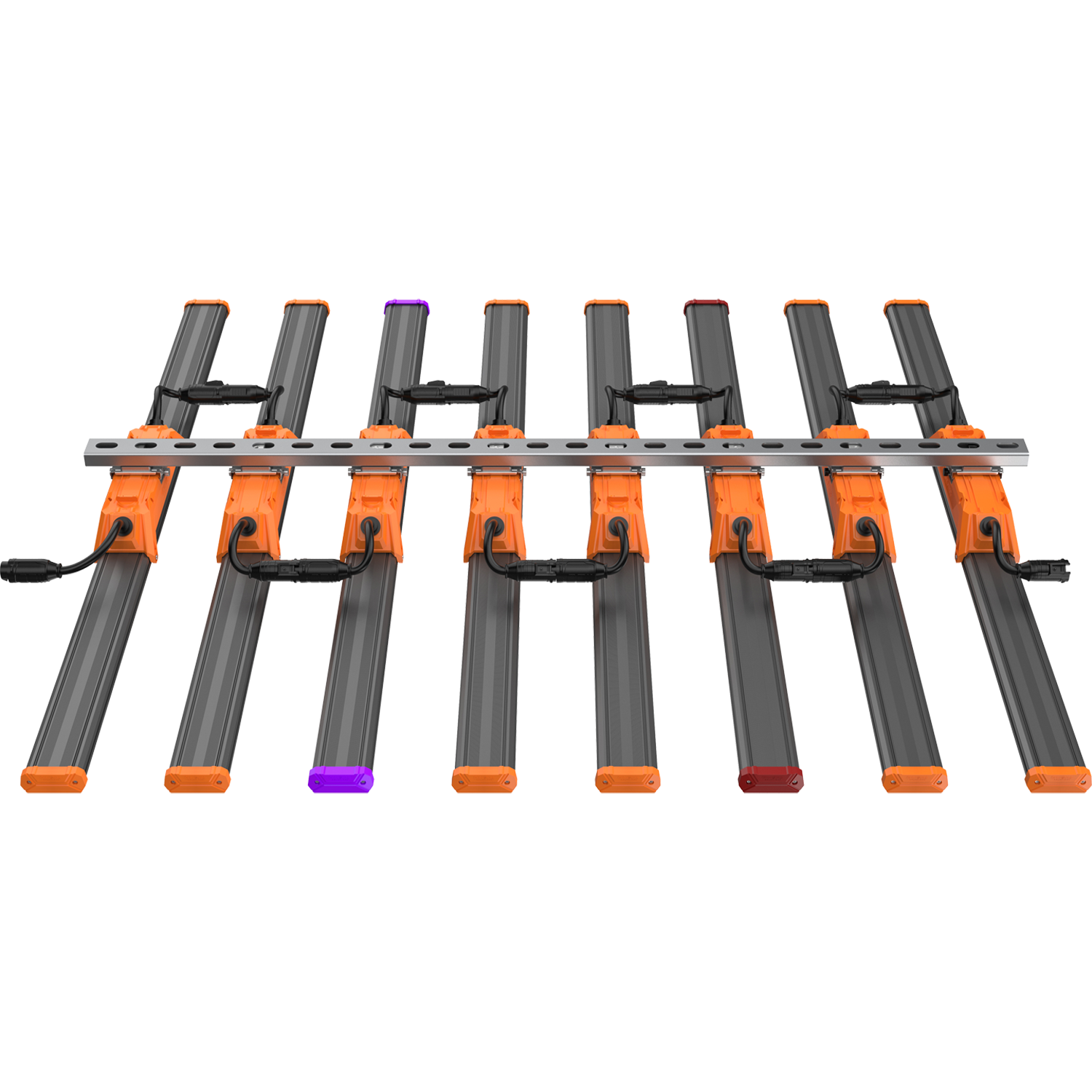

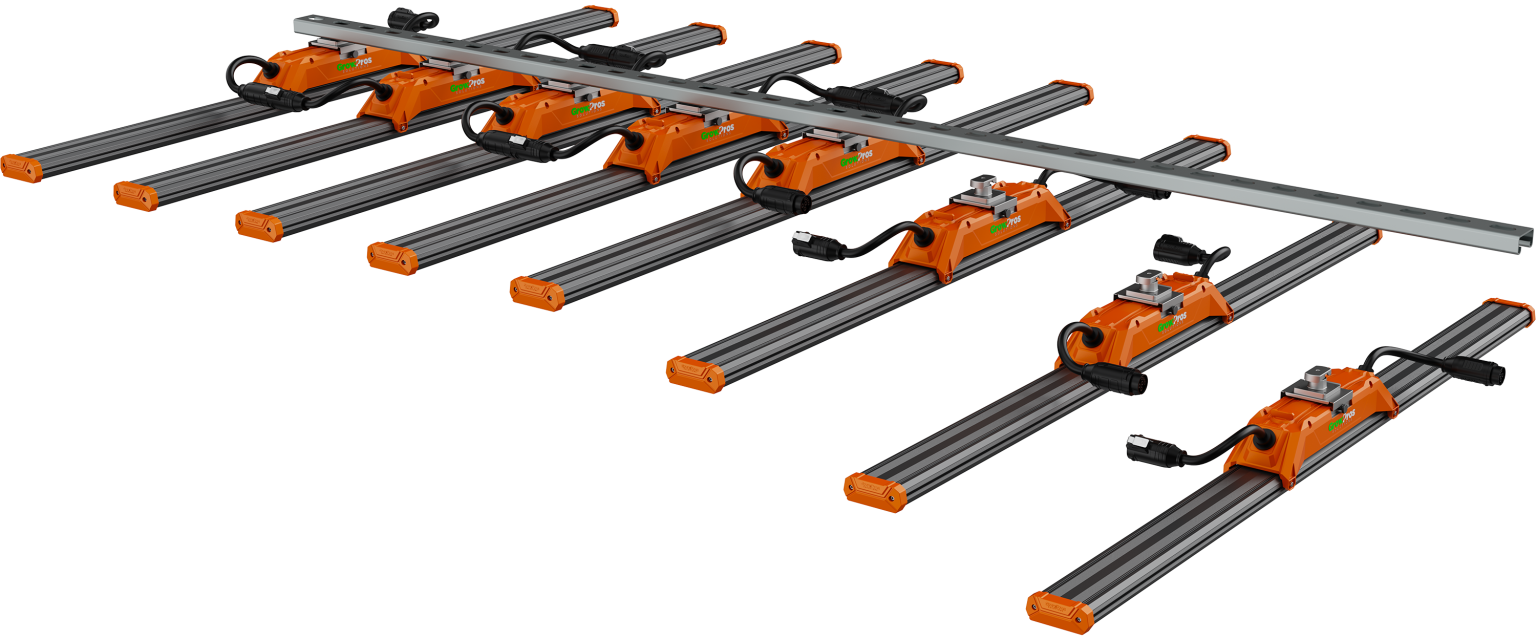

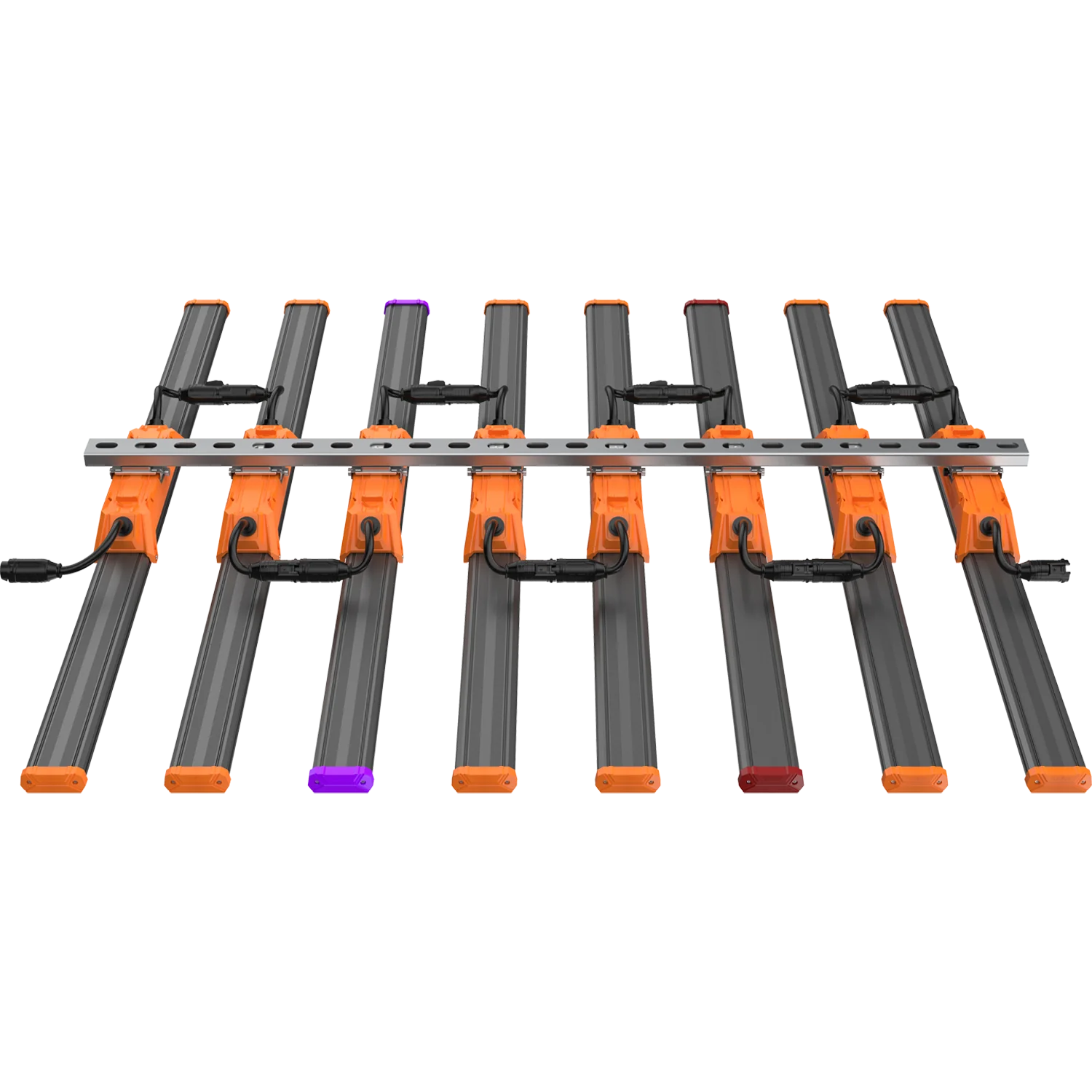

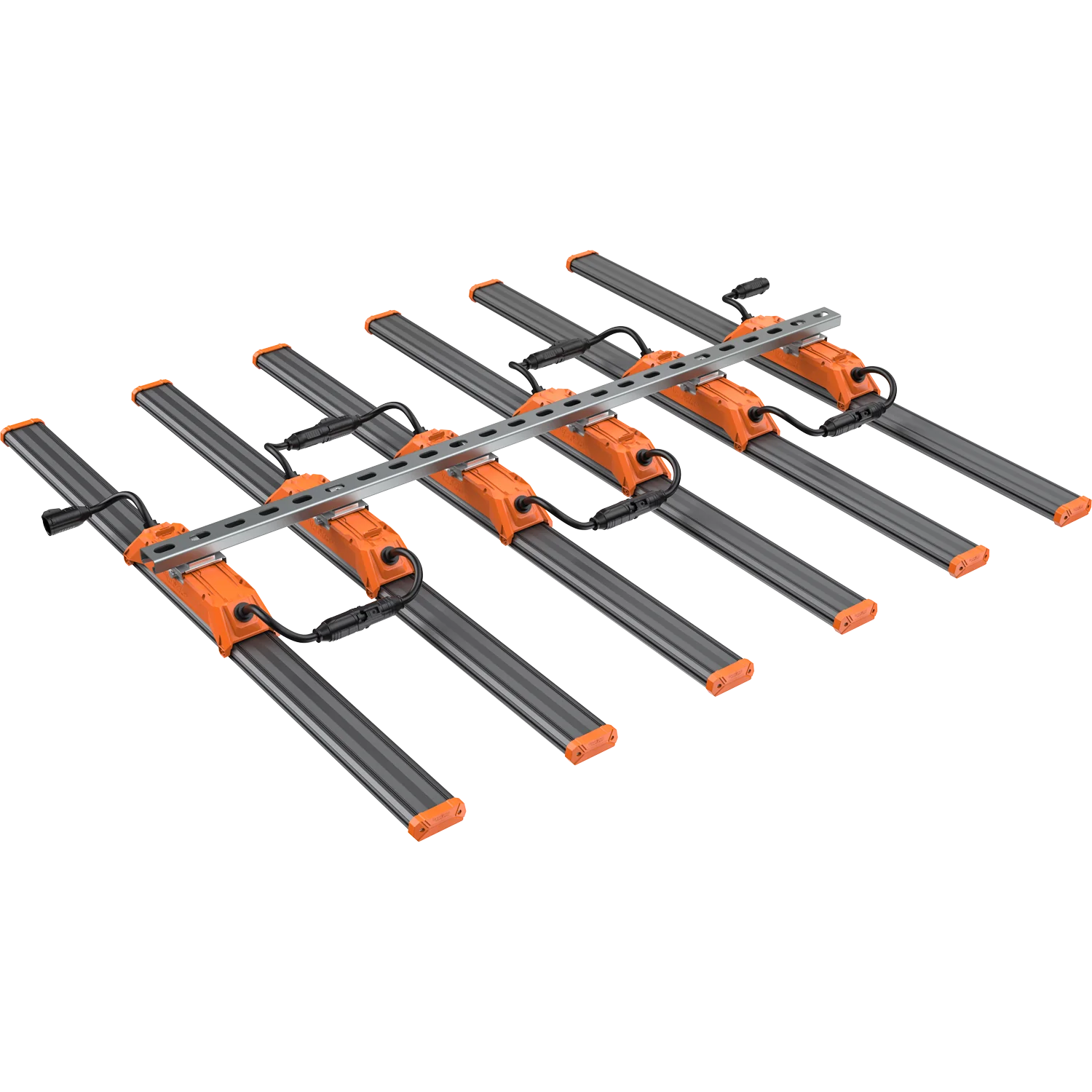

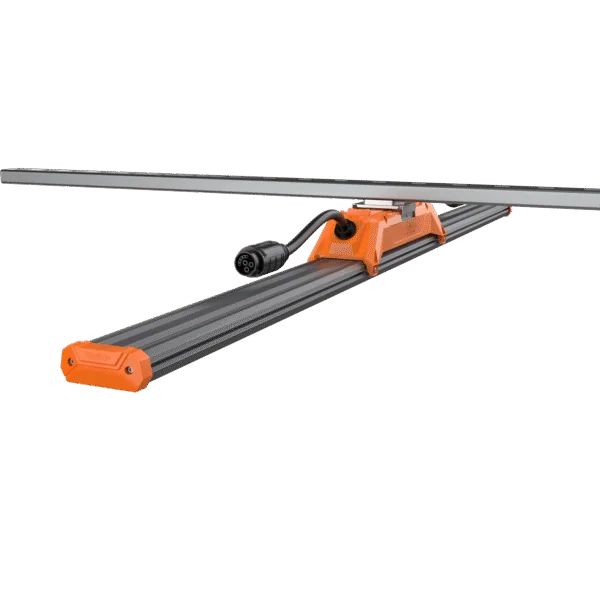

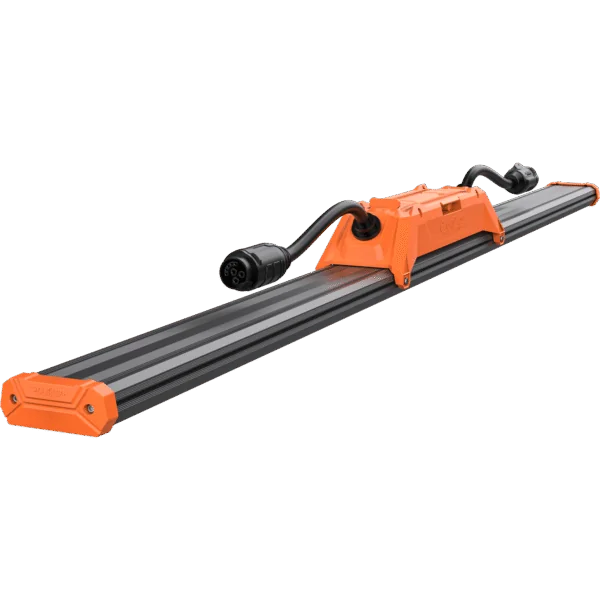

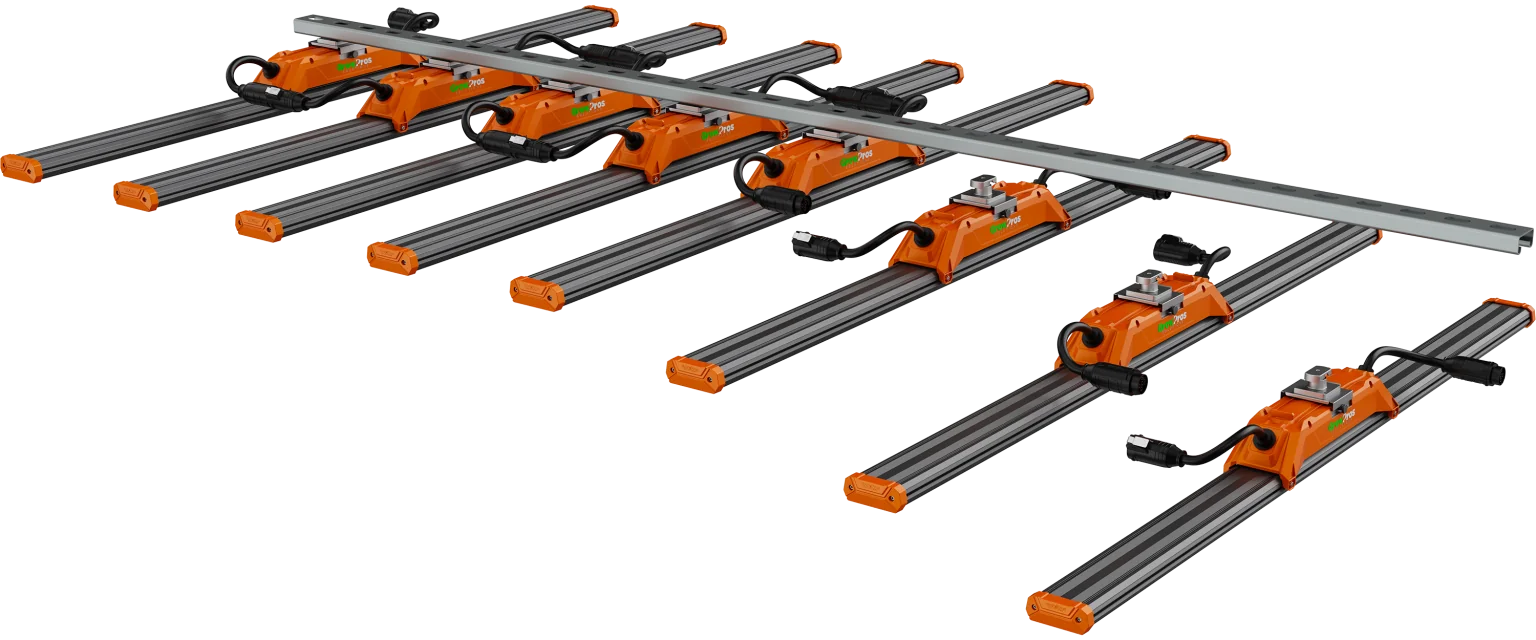

Modular Mounting Rack
Versatile design layout;
Limitless fixture configurations;
| INPUT VOLTAGE | 120V-277V |
| CONTROL | 0-10V dimming |
| FREQUENCY | 50/60Hz |
| POWER FACTOR | ≥0.9 |
| THERMAL MANAGEMENT | Passive |
| WORKING TEMPERATURE | 32°F ~ 104°F |
| WARRANTY | 5 year limited |
| VOLTAGE | 120V | 240V | 277V |
| Daisy Chain | 8 pcs | 16 pcs | 18 pcs |

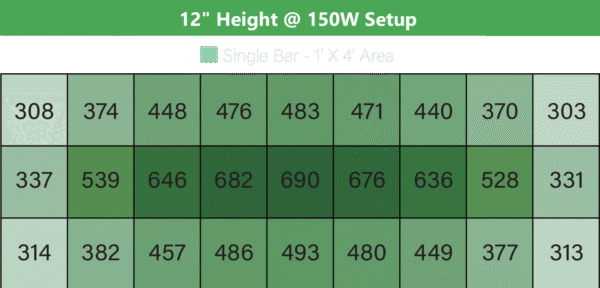

| PERFORMANCE DATA | MAX. POWER @ 12″ HEIGHT |
| PPF | 474 µmol/s |
| PPFD | 690 µmol/(m2*s) |
| PPE | Up to 3.16 µmol/J |
| AC VOLTAGE | 120V | 240V | 277V |
| AC CURRENT | 1.25A | 0.63A | 0.55A |

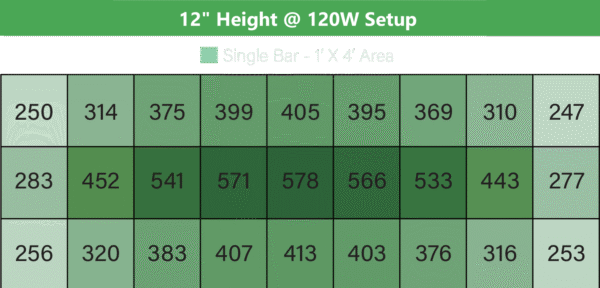

| PERFORMANCE DATA | MAX. POWER @ 12″ HEIGHT |
| PPF | 389 µmol/s |
| PPFD | 578 µmol/(m2*s) |
| PPE | Up to 3.24 µmol/J |
| AC VOLTAGE | 120V | 240V | 277V |
| AC CURRENT | 1.00A | 0.50A | 0.44A |
| PERFORMANCE DATA | MAX. POWER @ 12″ HEIGHT |
| PPF | 330 µmol/s |
| PPFD | 471 µmol/(m2*s) |
| PPE | Up to 3.3 µmol/J |
| AC VOLTAGE | 120V | 240V | 277V |
| AC CURRENT | 0.84A | 0.42A | 0.37A |

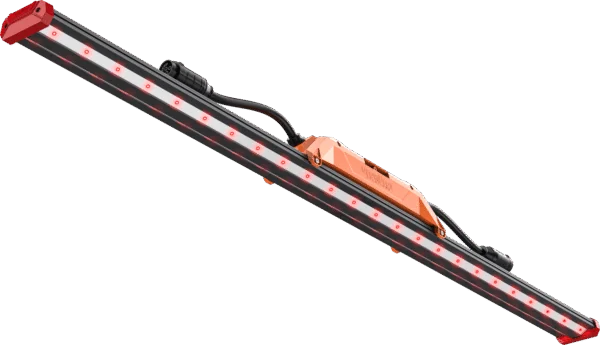

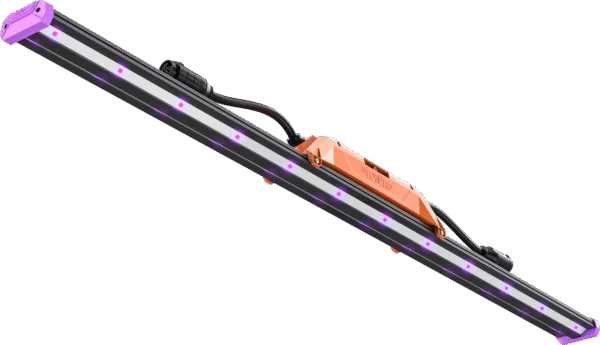

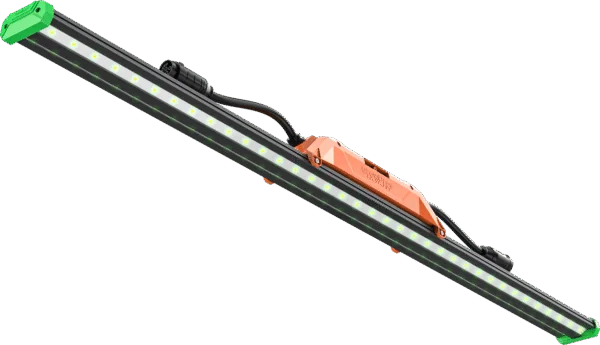

The GRIFFIN advanced grow light system is engineered for commercial indoor cultivation and greenhouse environments, delivering professional-grade spectrum control and exceptional coverage. As an advanced grow light solution, it combines full-spectrum diodes with targeted UV, green, and far-red channels to maximize yield, uniformity, and crop consistency from the
vegetative stage to the flowering stage.

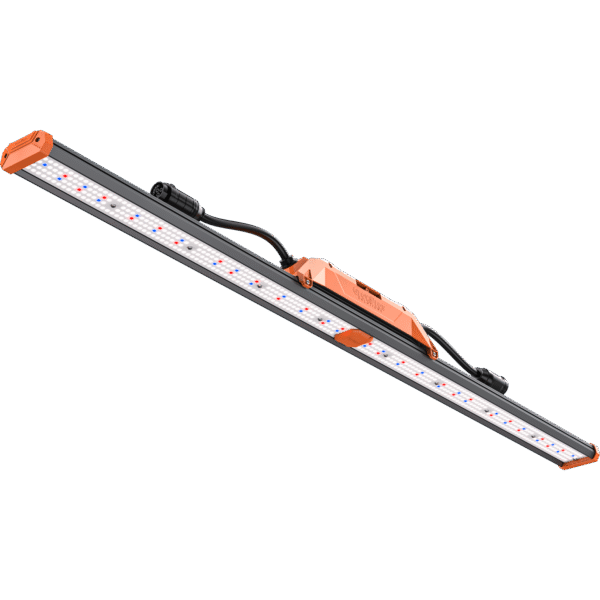

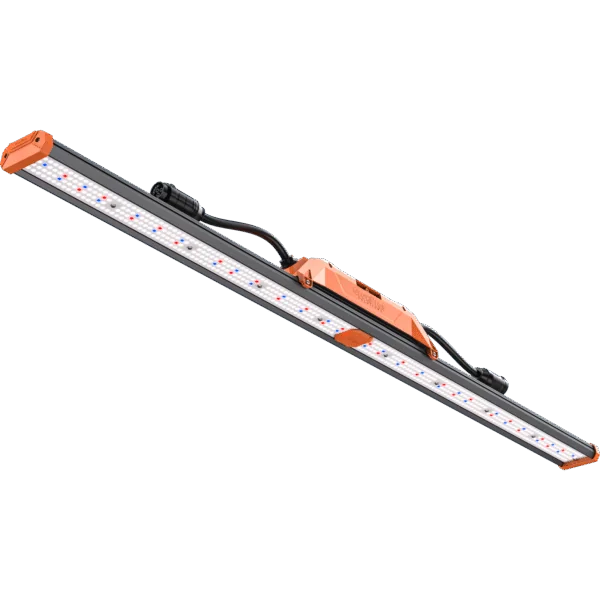

The fixture’s core full-spectrum white output mimics natural sunlight, promoting balanced growth and healthy development across all stages.

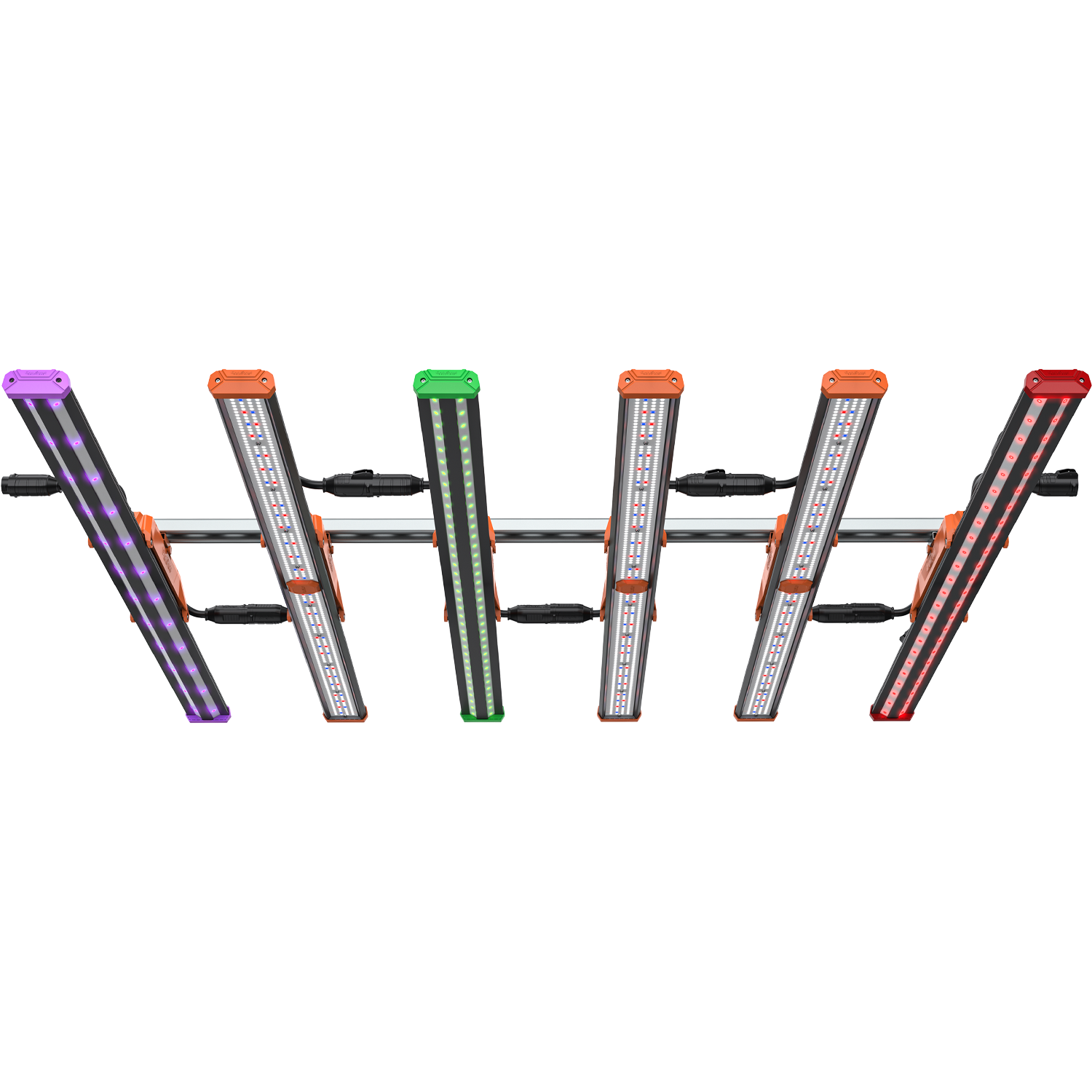

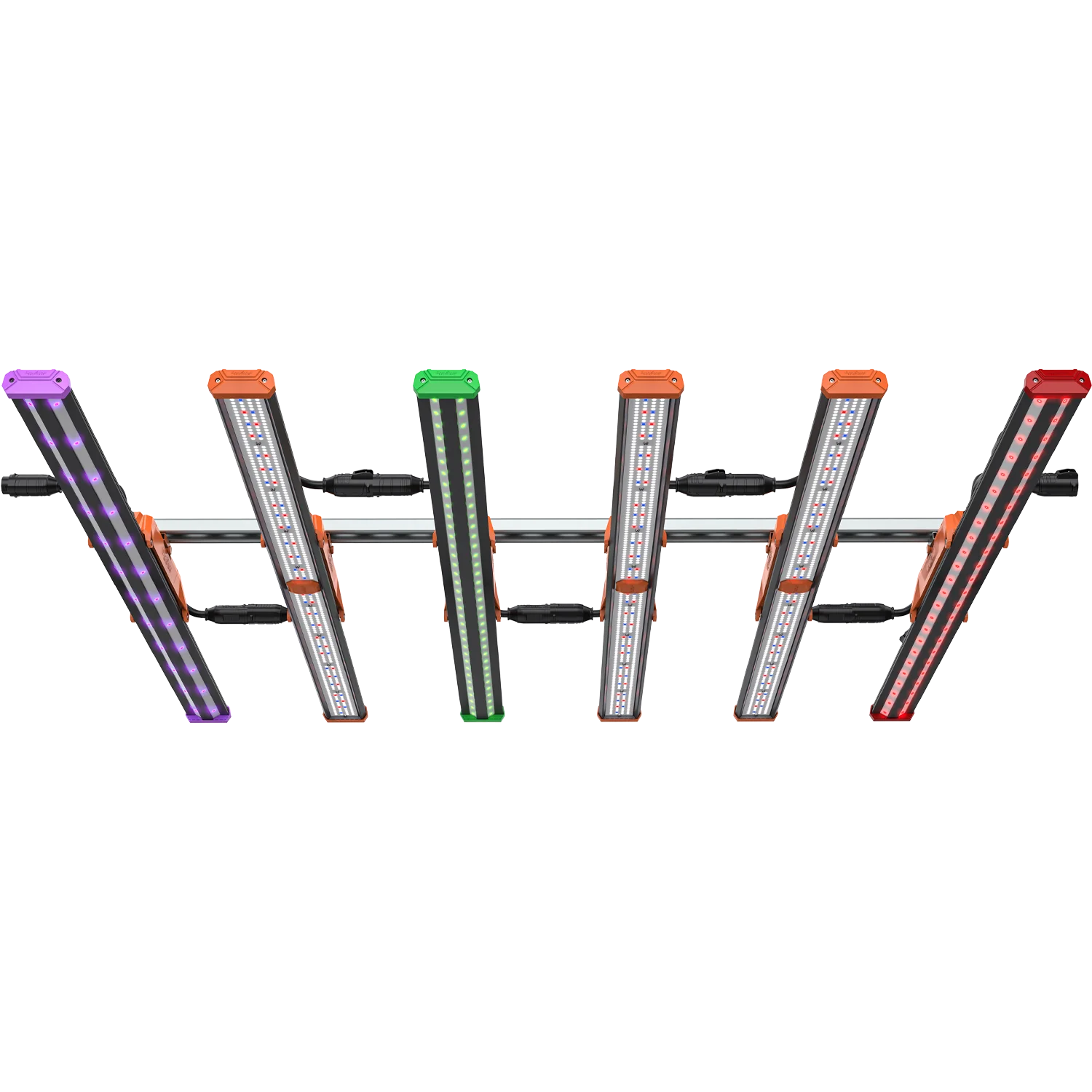

Each spectrum channel operates independently, giving growers unprecedented flexibility to customize light recipes, optimize plant morphology, and adapt to strain-specific requirements. This level of control is a defining feature of a modern advanced grow light.
With a PPE rating reaching 3.1 µmol/J, the GRIFFIN delivers industry-leading efficiency, enabling superior biomass production while reducing energy consumption. This ensures the highest return on investment in professional growing environments.
Optimized thermal management keeps temperatures stable across bars and diodes. This protects plant tissue, reduces stress, and maintains consistent output throughout the life of the fixture.

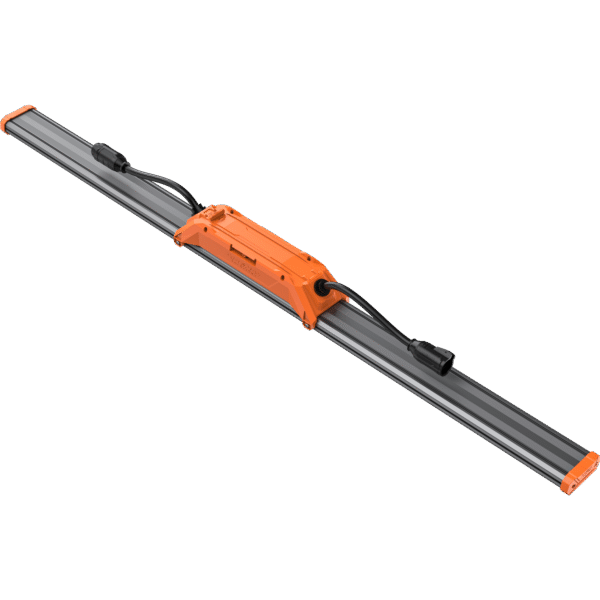

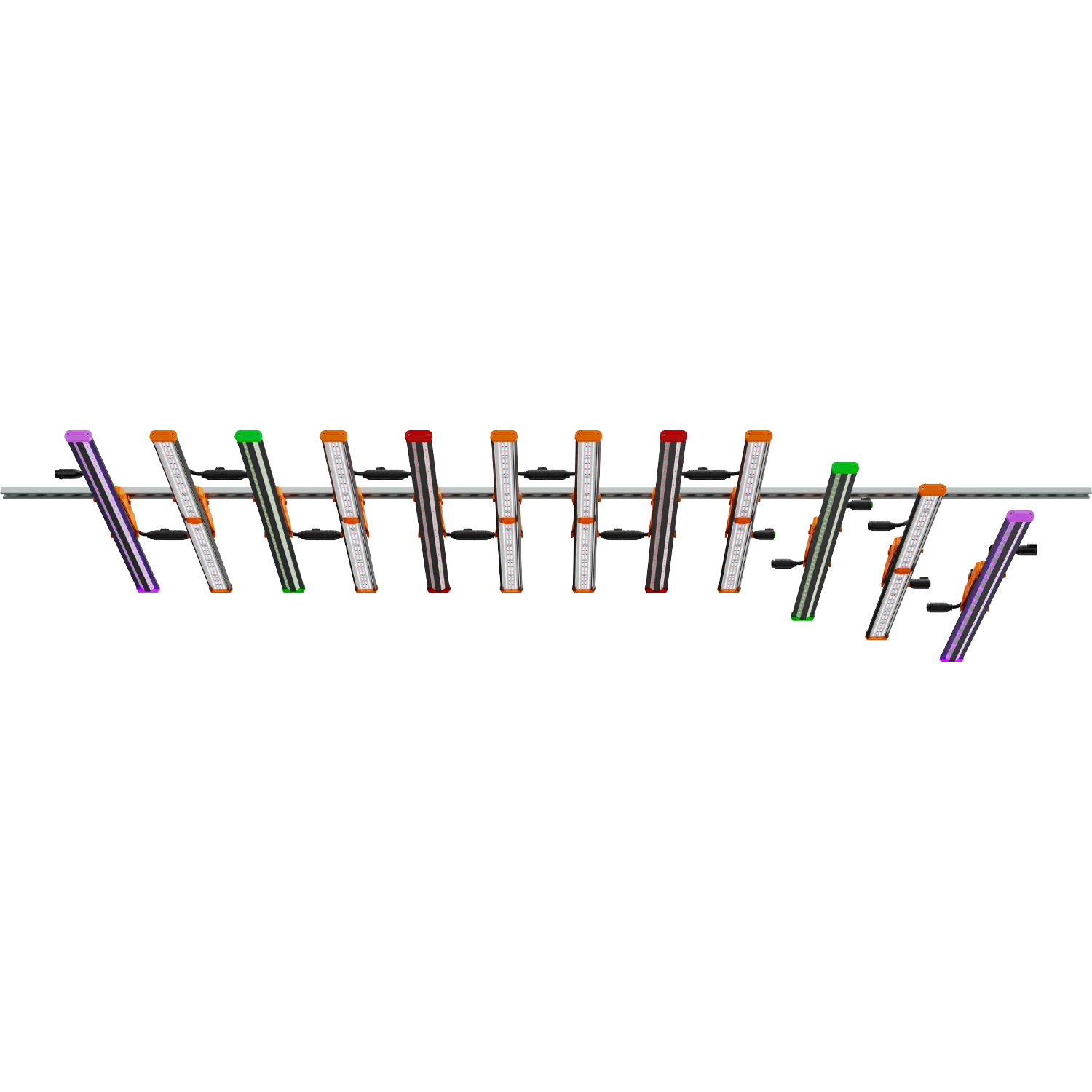

The detachable bars allow growers to instantly modify the spectral arrangement, making it easy to isolate certain wavelengths or replace components without tools. This modularity supports rapid experimentation and streamlined maintenance.

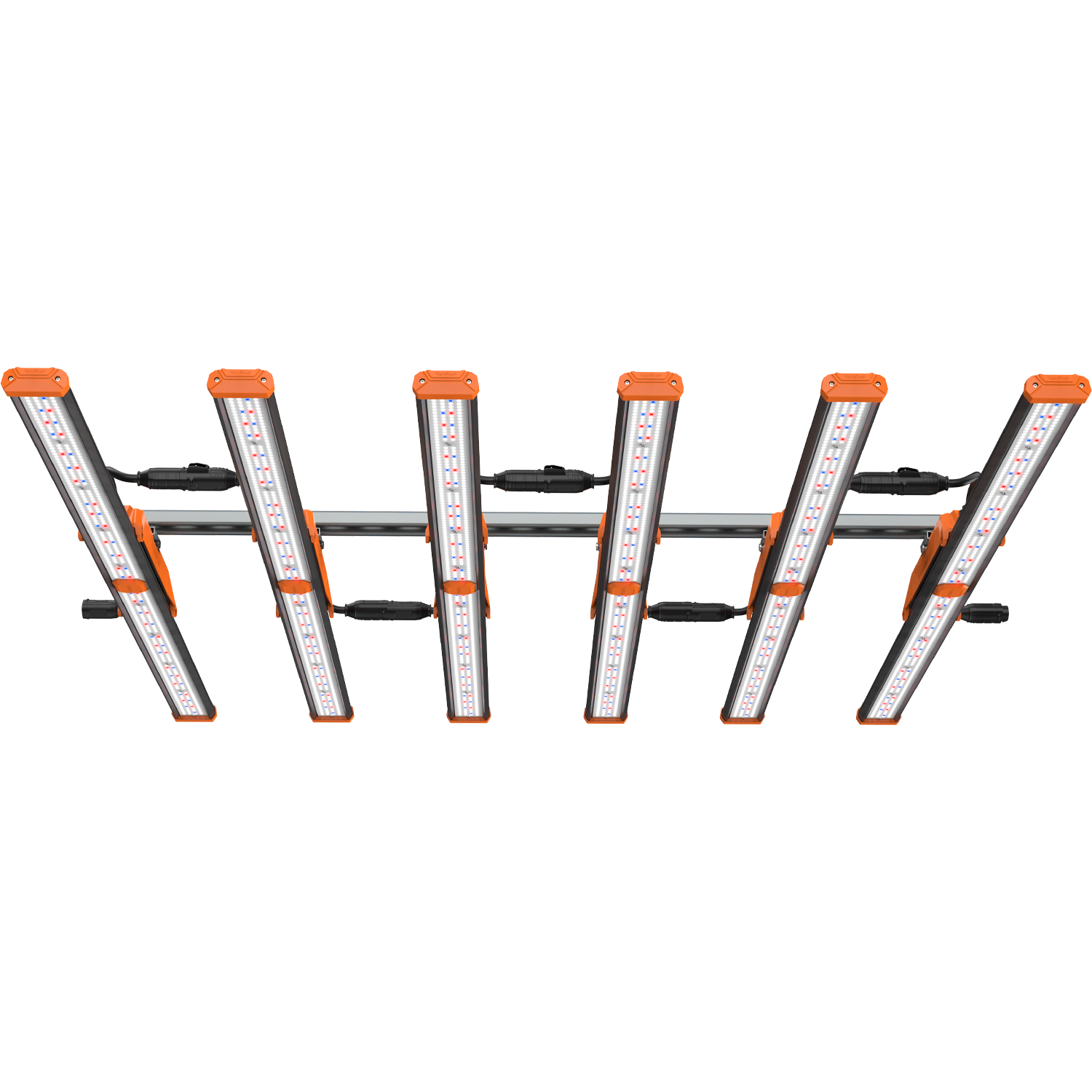

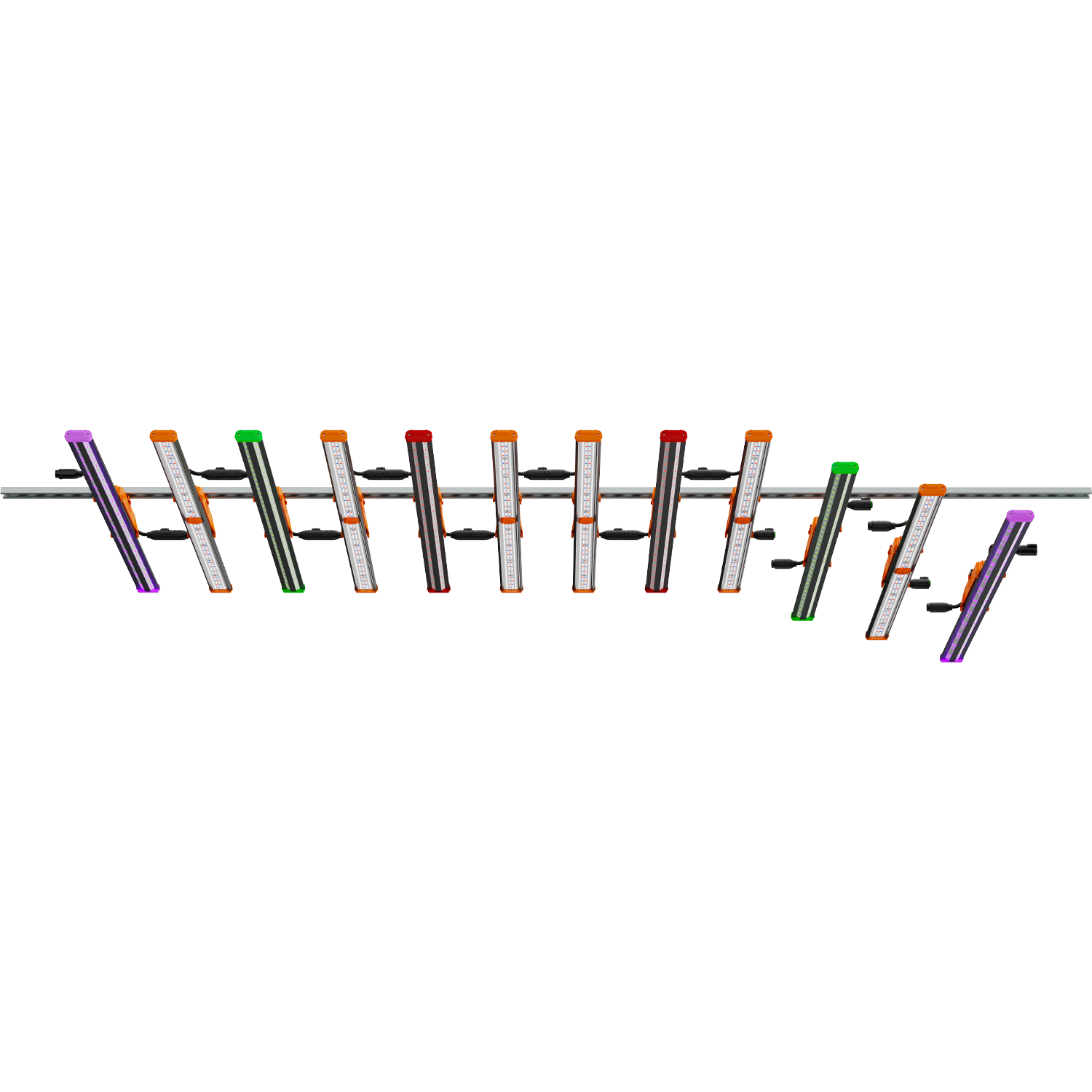

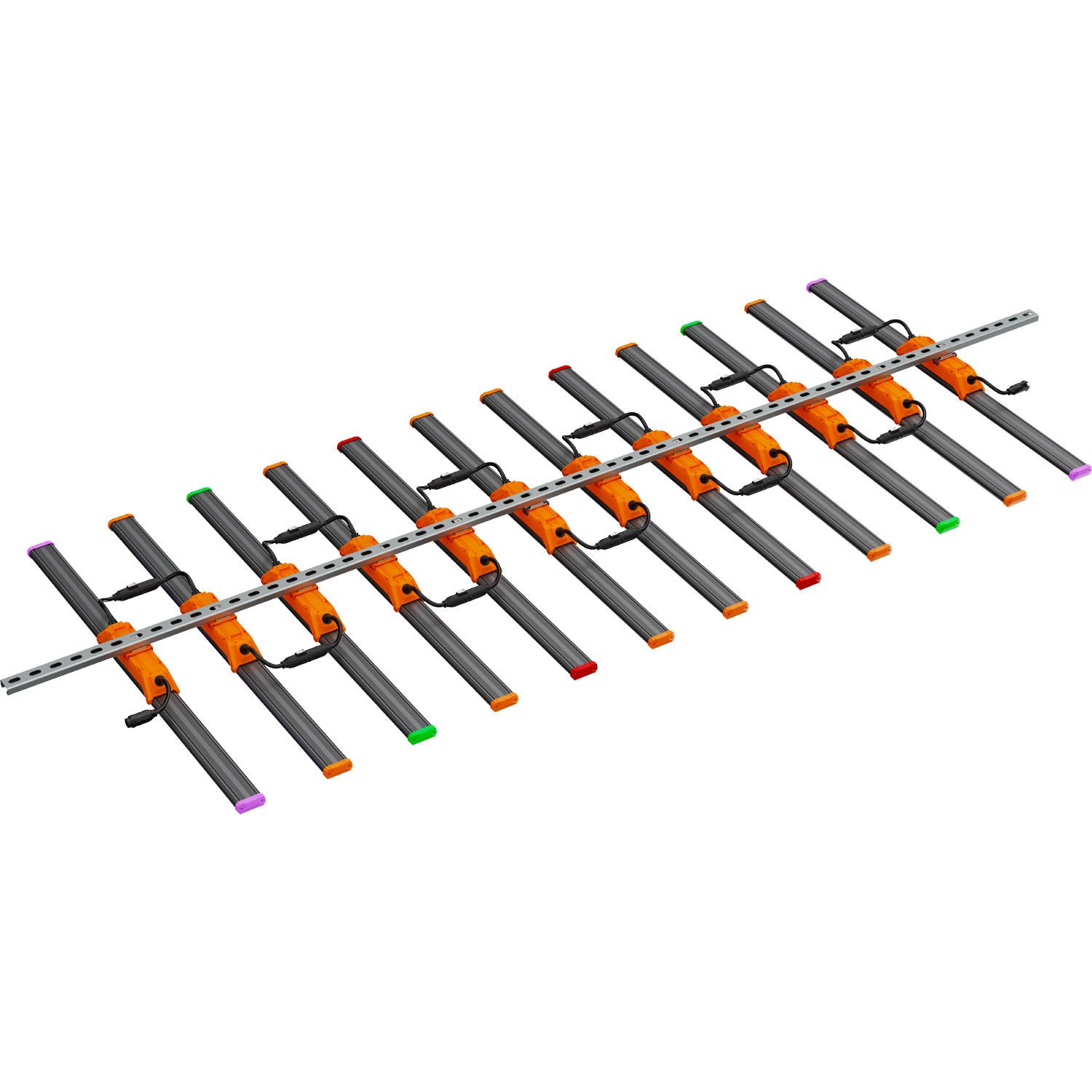

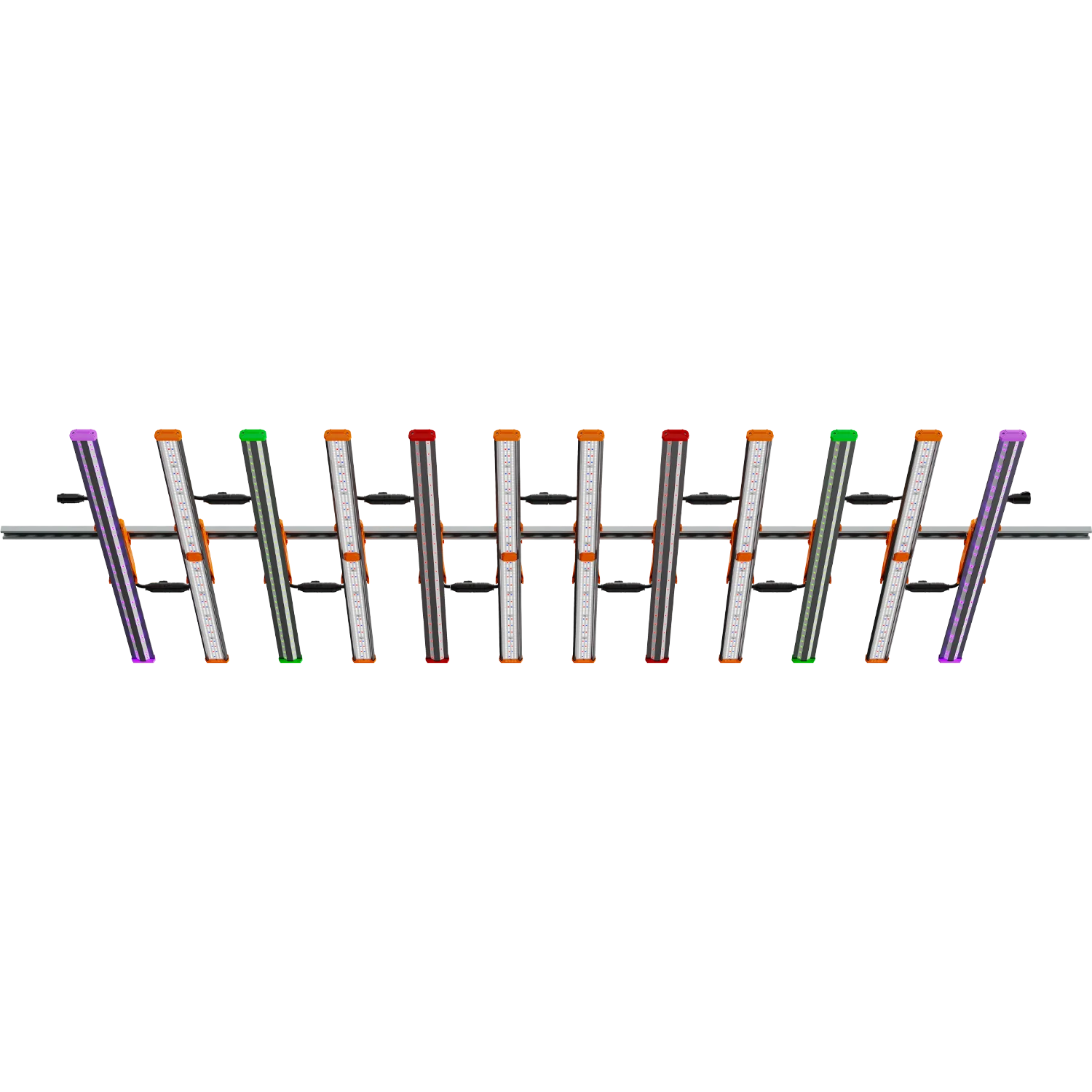

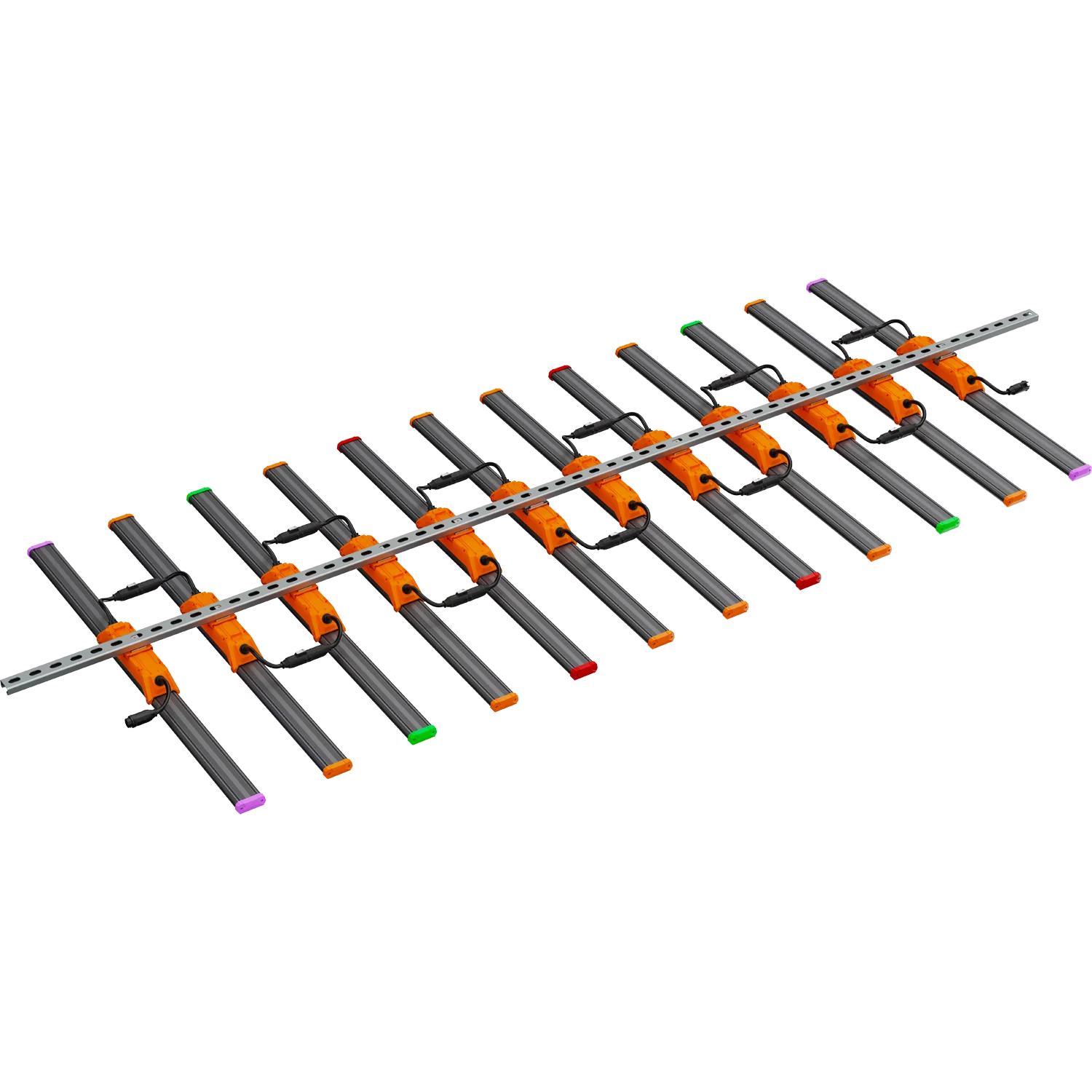

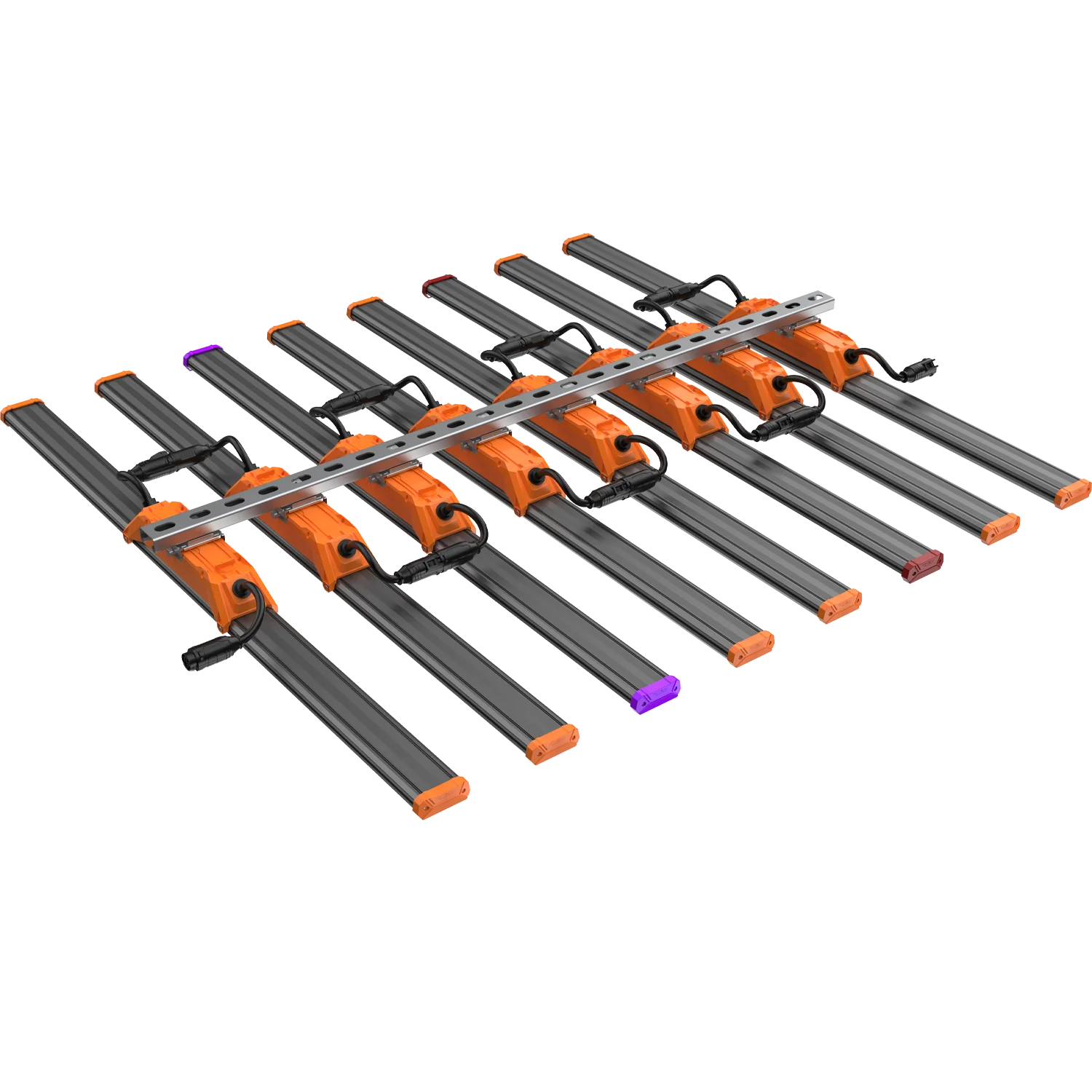

The GRIFFIN’s versatile design supports customizable spacing, adjustable bar layouts, and creative array formation. Whether used in traditional rooms, vertical farming setups, or greenhouse top-lighting, this advanced grow light
system adapts seamlessly.
Each fixture includes intuitive quick-connection ports for rapid assembly. These plug-and-play features reduce installation time and simplify troubleshooting in large-scale operations.
Multiple fixtures can be linked together through a single power path, reducing cable clutter and simplifying electrical layouts.
Control signals pass through the same connection points as power, eliminating the need for extra data cables. This allows scalable centralized management across entire grow rooms.
By combining power and data into shared ports, the system improves reliability and supports more streamlined automation—another hallmark of a high-end advanced grow light.
Growers can make targeted adjustments across specific bars, channels, or zones, enabling fine-tuned intensity and spectral distribution based on plant height, density, or developmental stage.
The snap-on modular bar design ensures quick replacements and minimizes downtime, keeping commercial operations running smoothly.
With its high PPE, flexible spectrum control, and scalable design, the GRIFFIN provides growers with unmatched control over their lighting environment—boosting yield quality, reducing stress, and improving overall efficiency.
From early veg to late bloom, the fixture’s multi-channel system ensures plants receive exactly the light they need, when they need it. This makes it one of the most adaptable and powerful advanced grow light systems on the market.
