Grow Pros Solutions has upgraded to using Waterproof RJ45 cables for lighting data control. The screw style end cap on our WP RJ45 data connections seals the data connections from moisture that corrodes the data pin connections and lead to failed data signals. The era of traditional 4pin RJ12 non-waterproof data connections that have been used in indoor Agriculture with dual ended HPS and older LEDs has come to end. No more need to gum connections with dielectric grease or spend hours troubleshooting to find the one faulty data cord or splitter.

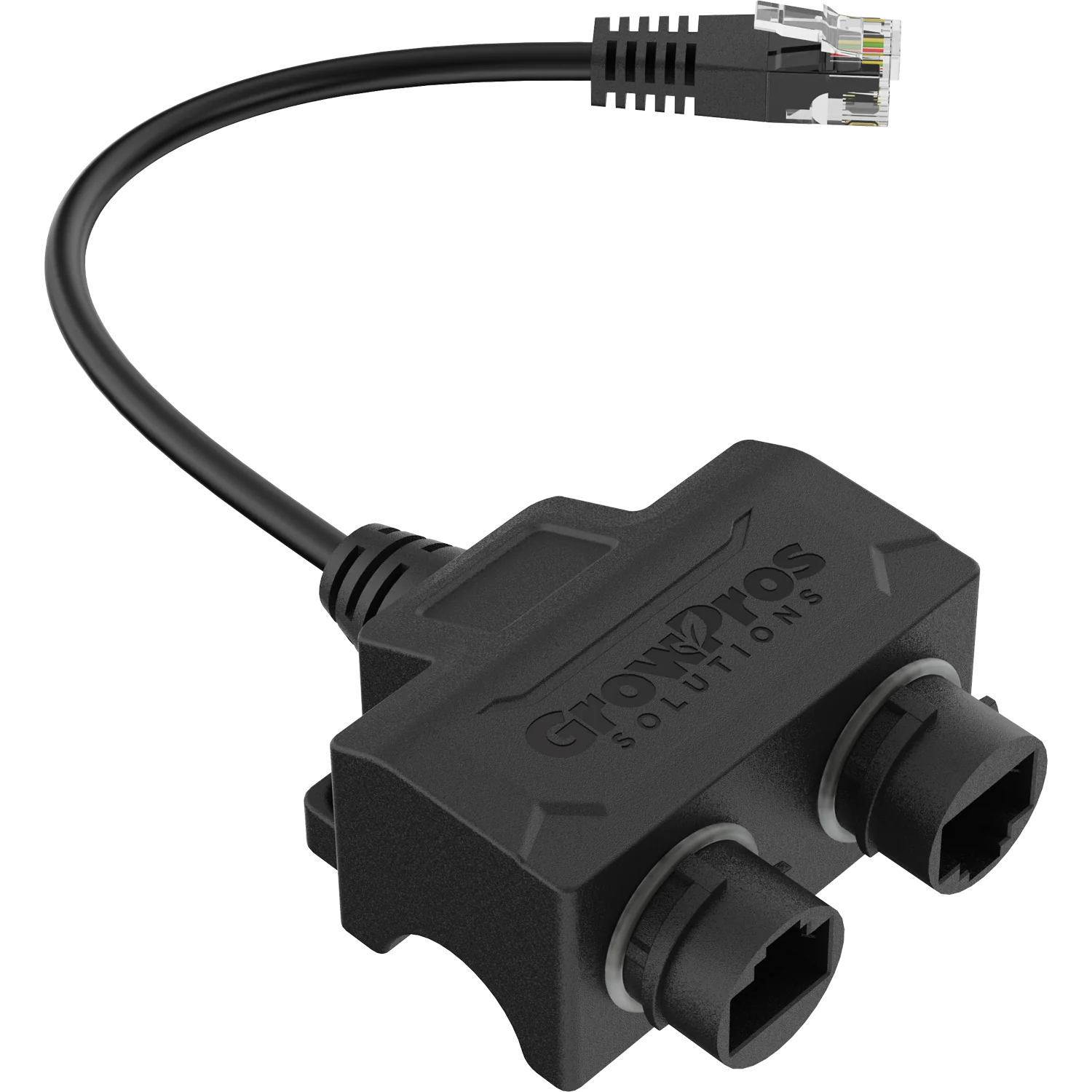

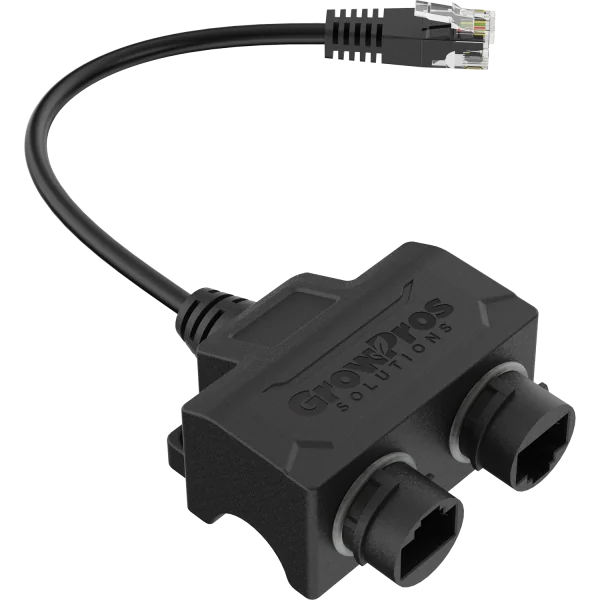

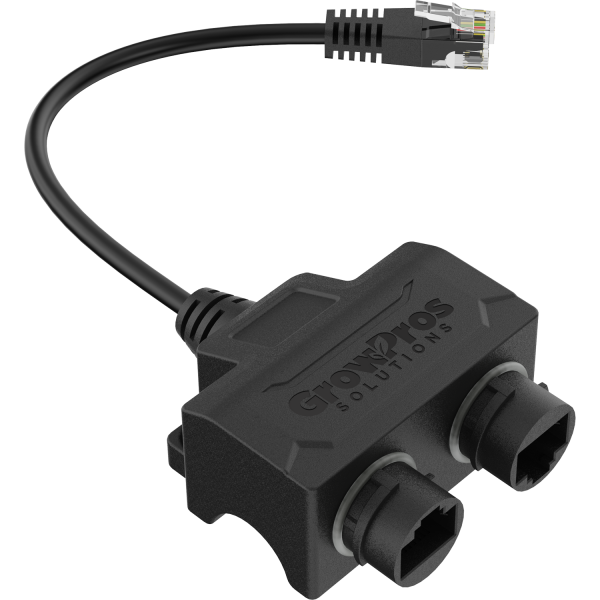

Our Data Adapters are color coded for your convenience.

Please read each description to make sure you select the correct adapter. Feel free to reach out to our tech support.

FEATURES & BENEFITS

• Typically only 1 adapter required per controller/room.
• The male RJ12 connector receives an individual standard analog 0-10v dimming signal from a digital lighting controller. 6p6c Pin Out from controller = [1] X [2] (+) [3] (-) [3] (-) [5] (+) [6] X to our WP RJ45 8p8c dimming protocol – request Pin Outs for specific Grow Pros Solutions lights from chuck@wegrowpros.com.

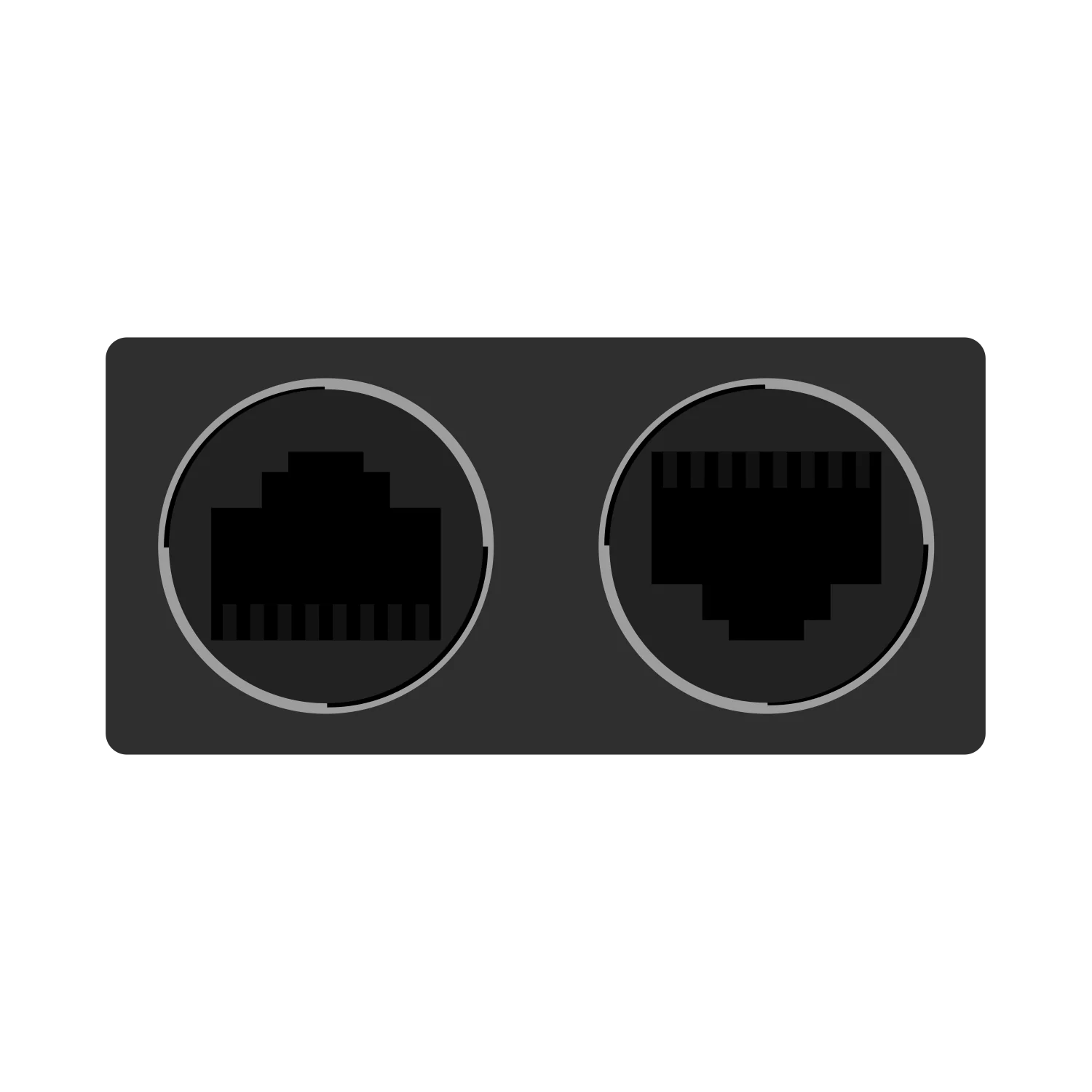

• The dual RJ45 female ports use a Waterproof interface to ensure a firm and reliable connection, reducing the risk of accidental disconnection in active installations.
• Duplicates one control signal into two identical outputs, allowing multiple devices to receive the same command from a single RJ12 controller port.
• Gold-plated contact pins enhance long-term contact reliability and help maintain consistent signal transmission in low-voltage control applications.
• A sealed design at the ports helps protect connections in environments where humidity or moisture may be present.
• Use WP RJ45 cables and GPS 4 Way RJ45 Data Splitter to connect multiple rows of lights together to connect to the adapter.
• Compatible with Grow Pros White Controller (GPS Single channel lights only), TrolMaster LMA-14 (GPS Single channel lights only), AC Infinity Adapter A (GPS Single channel lights only), most other 0-10v digital lighting controllers.
