Grow Pros Solutions has upgraded to using Waterproof RJ45 cables for lighting data control. The screw style end cap on our WP RJ45 data connections seals the data connections from moisture that corrodes the data pin connections and lead to failed data signals. The era of traditional 4pin RJ12 non-waterproof data connections that have been used in indoor Agriculture with dual ended HPS and older LEDs has come to end. No more need to gum connections with dielectric grease or spend hours troubleshooting to find the one faulty data cord or splitter.

Our Data Adapters are color coded for your convenience.

Please read each description to make sure you select the correct adapter. Feel free to reach out to our tech support.

FEATURES & BENEFITS

• Only 1 adapter required per controller/room.

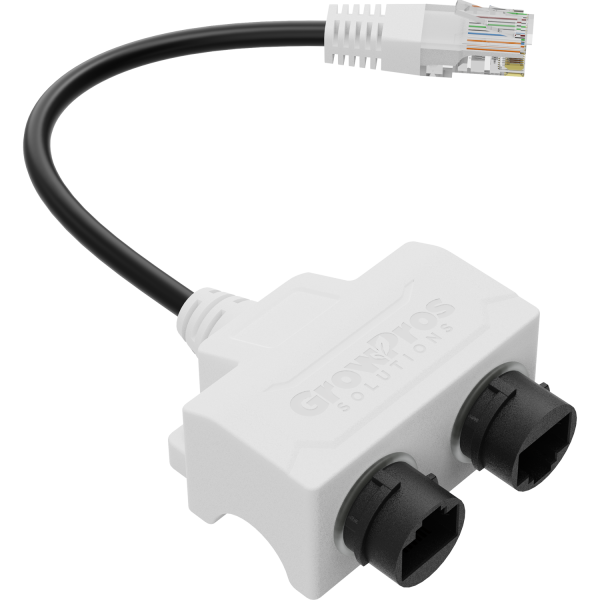

• The male RJ45 connector receives the RS485 output signals from the Dim Out RJ45 on our controller. The adapter converts this signal into (4) analog 0-10v dimming signals – request Pin Outs for specific Grow Pros Solutions lights or controller from chuck@wegrowpros.com.
• The dual RJ45 female ports use a Waterproof interface to ensure a firm and reliable connection, reducing the risk of accidental disconnection in active installations.
• Duplicates one multi-channel control signal into two identical outputs, allowing multiple devices to receive the same command from a single controller.
• Gold-plated contact pins enhance long-term contact reliability and help maintain consistent signal transmission in low-voltage control applications.
• A sealed design at the ports helps protect connections in environments where humidity or moisture may be present.
• Use WP RJ45 cables and GPS 4 Way RJ45 Data Splitter to connect multiple rows of lights together to connect to the adapter.
• Designed for GPS Controllers – use to control Dual Channel or Quad Channel Grow Pros Solutions lights.
• (Note – GPS White controller and White Adapter will sync CH1 and CH2 timing and dimming settings of simultaneously if attempting to run multiple spectrum controlled GPS lights with one controller – example CH1 UVA on Chameleon top light and CH1 Full Spec 80% DR on UCL4 will link together, and CH2 Full Spectrum on Chameleon top light and CH2 Independent 730nm Far Red on UCL4 will link together. ) Call Chuck at (323) 621-6850 as we may be able to figure out some splices to accomplish your exact goal.
• Can be used with GPS White Controller and GPS Single Channel Lights (not recommended).
